LTE System

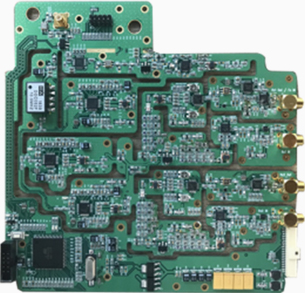

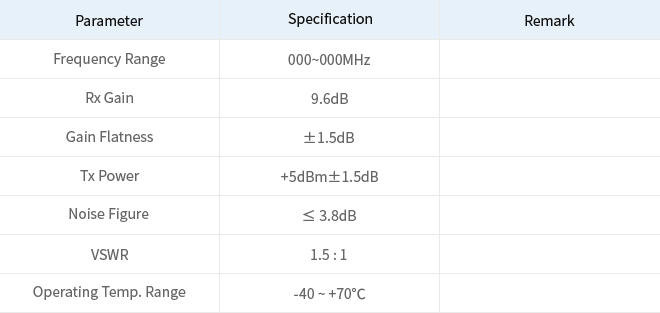

Up/Down Converter for Terminal
Main features
- Interconnected a LTE M2M Modem
- TDD operation
Specifications
| Parameter |
Specification |
Remark |
| Frequency Range |
000~000MHz |
|
| Rx Gain |
9.6dB |
|
| Gain Flatness |
±1.5dB |
|
| Tx Power |
+5dBm±1.5dB |
|
| Noise Figure |
3.8dB 이하 |
|
| VSWR |
1.5:1 |
|
| Operation Temp |
-40~ +70℃ |
|

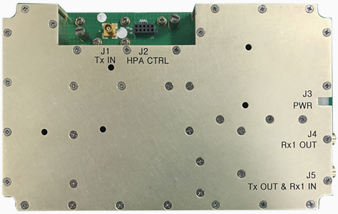

Power Amplifier Module
Main features

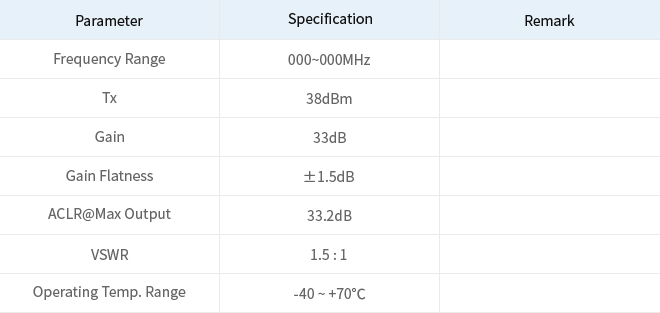

Specifications
| Parameter |
Specification |
Remark |
| Frequency Range |
000~000MHz |
|
| Tx |
38dBm |
|
| Gain |
33dB |
|
| Gain Flatness |
±1.5dB |
|
| ACLR@Max Output |
33.2dB |
|
| VSWR |
1.5:1 |
|
| Operation Temp |
-40~ +70℃ |
|

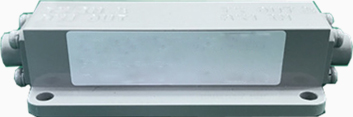

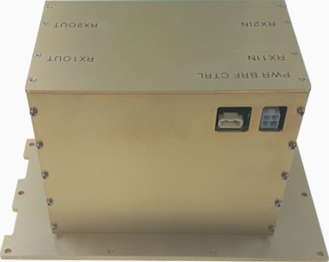

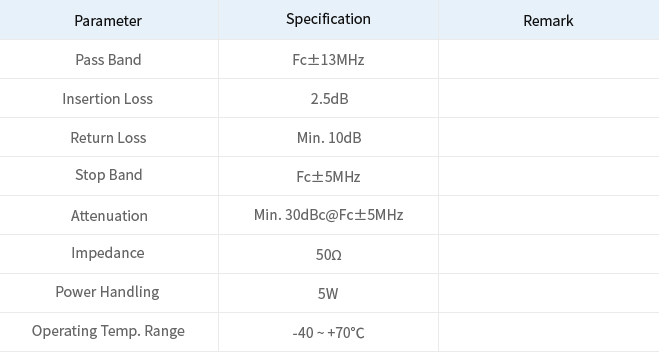

Tunable BRF
Main features
- Interference rejection filter of the Base station
Specifications
| Parameter |
Specification |
Remark |
| Pass Band |
Fc±13MHz |
|
| Insertion Loss |
2.5dBm |
|
| Return Loss |
Min.10dB |
|
| Stop Band |
Fc±5MHz |
|
| Attenuation |
Min.30dBc@Fc±5MHz |
|
| Impendance |
50Ω |
|
| Power Handling |
5W |
|
| Operation Temp |
-40~ +70℃ |
|

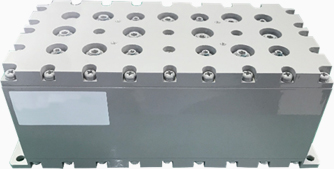

5FA BPF
Main features
- Adjacent channel noise filter of Uplink
- Downlink signal band-pass filter

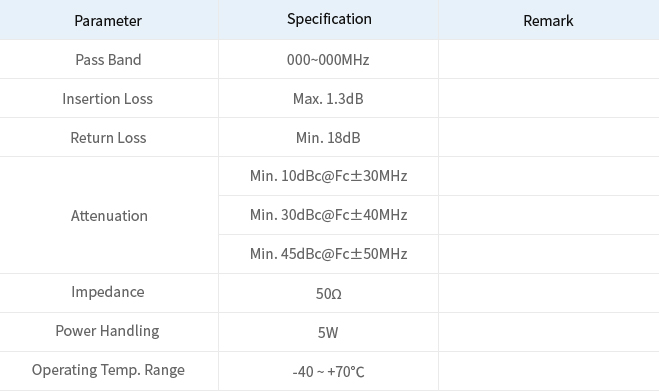

Specifications
| Parameter |
Specification |
Remark |
| Pass Band |
000~000MHz |
|
| Insertion Loss |
Max.1.3dBm |
|
| Return Loss |
Min.18dB |
|
| Attenuation |
Min.10dBc@Fc±30MHz |
|
| Min.30dBc@Fc±40MHz |
|
| Min.45dBc@Fc±50MHz |
|
| Impendance |
50Ω |
|
| Power Handling |
5W |
|
| Operation Temp |
-40~ +70℃ |
|
LPF
Main features
- Eliminating harmonic components of Uplink

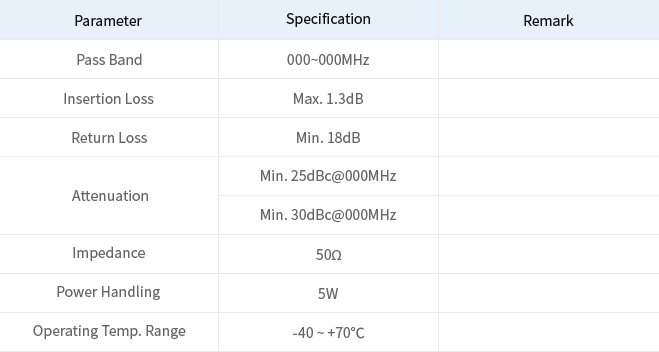

Specifications
| Parameter |
Specification |
Remark |
| Pass Band |
000~000MHz |
|
| Insertion Loss |
Max.1.3dBm |
|
| Return Loss |
Min.18dB |
|
| Attenuation |
Min.25dBc@000MHz |
|
| Min.30dBc@000MHz |
|
| Impendance |
50Ω |
|
| Power Handling |
5W |
|
| Operation Temp |
-40~ +70℃ |
|
