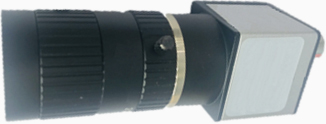

Barcode Recognition Module

icon

Embedded Type

Main features
  • Embedded camera with barcode recognition algorithm configured.
  • High resolution sensor embedded
  • High speed processing rate
  • 1D and 2D barcode recognition
  • Various designs and applications optimized to customers’ needs

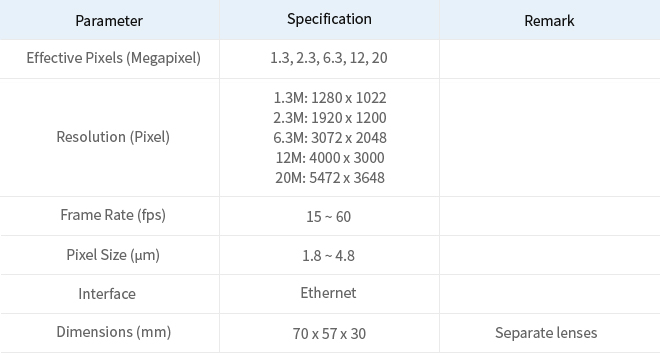

Specifications
Parameter Specification Remark
Effective Pixels (Megapixel) 1.3,2.3,6.3,12,20
Resolution (Pixel) 1.3M: 1280x1022
2.3M: 1920x1200
6.3M: 3072x2048
12M: 4000x3000
20M: 5472x3648
Frame Rate (Fps) 15 ~ 60
Pixel Size (μm) 1.8 ~ 4.8
Interface Ethernet
Dimensions (mm) 70 x 57 x 30 Separate lenses

Camera Type

Main features
  • Camera which allowed to provide various utilization such as barcode recognition and application processing by linking this camera with image acquiring algorithm embedded to it, with the image processing system
  • High resolution sensor embedded
  • 1D and 2D barcode recognition
  • Various designs and applications optimized to customers’ needs

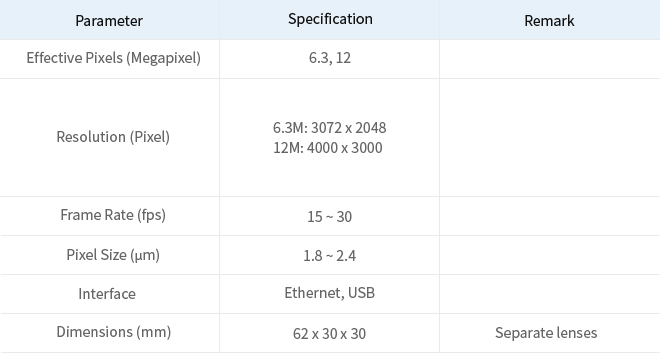

Specifications
Parameter Specification Remark
Effective Pixels (Megapixel) 6.3,12
Resolution (Pixel) 6.3M: 3072x2048
12M: 4000x3000
Frame Rate (Fps) 15 ~ 30
Pixel Size (μm) 1.8 ~ 2.4
Interface Ethernet, USB
Dimensions (mm) 62 x 30 x 30 Separate lenses
