PIM Analysis Module

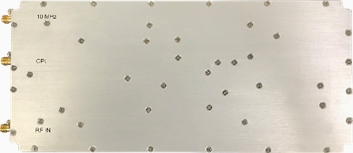

PIM Measurement Module

Main features
  • Dedicated 650~2700MHz band
  • High measurement accuracy
  • Applied a self-developed measurement algorithm
  • GUI provides a various measurement way

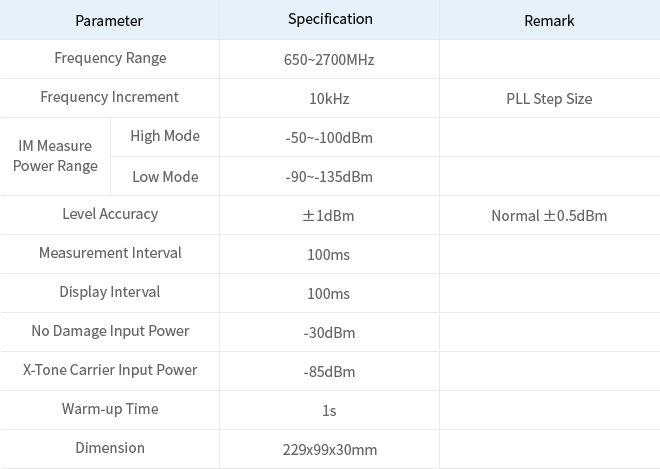

Specifications
Parameter Specification Remark
Frequency Range 650~2700MHz
Frequency Increment 10kHz PLL Step Size
IM Measure Power Range High Mode -50~-100dBm
IM Measure Power Range Low Mode -90~-135dBm
Level Accuracy ±1dBm Normal ±0.5dBm
Measurement Interval 100ms
Display Interval 100ms
No Damage Input Power -30dBm
X-Tone Carrier Input Power -85dBm
Warm-up Time 1s
Dimension 229x99x30mm

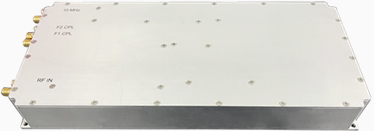

Broadband PIM Measurement Module

Main features
  • Dedicated 650~2700MHz band
  • High measurement accuracy
  • Applied a self-developed measurement algorithm
  • GUI provides a various measurement way

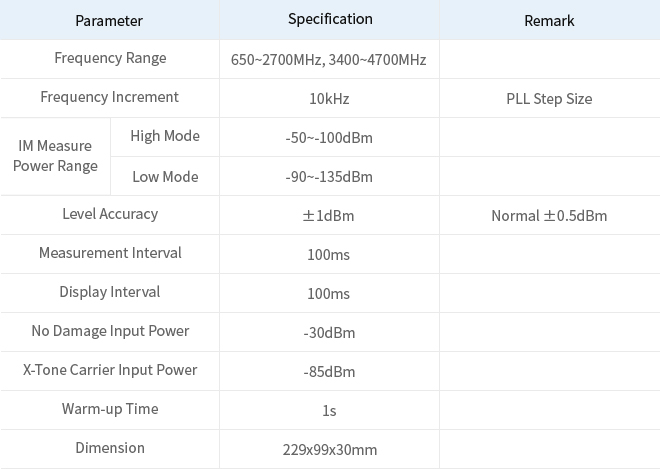

Specifications
Parameter Specification Remark
Frequency Range 650~2700MHz, 3400~4700MHz
Frequency Increment 10kHz PLL Step Size
IM Measure Power Range High Mode -50~-100dBm
IM Measure Power Range Low Mode -90~-135dBm
Level Accuracy ±1dBm Normal ±0.5dBm
Measurement Interval 100ms
Display Interval 100ms
No Damage Input Power -30dBm
X-Tone Carrier Input Power -85dBm
Warm-up Time 1s
Dimension 229x99x30mm

Portable PIM Measurement Module

Main features
  • Dedicated Broadband
  • PIM, VSWR, DTP and DTF measurements
  • Applied a self-developed measurement algorithm
  • GUI provides a various measurement way

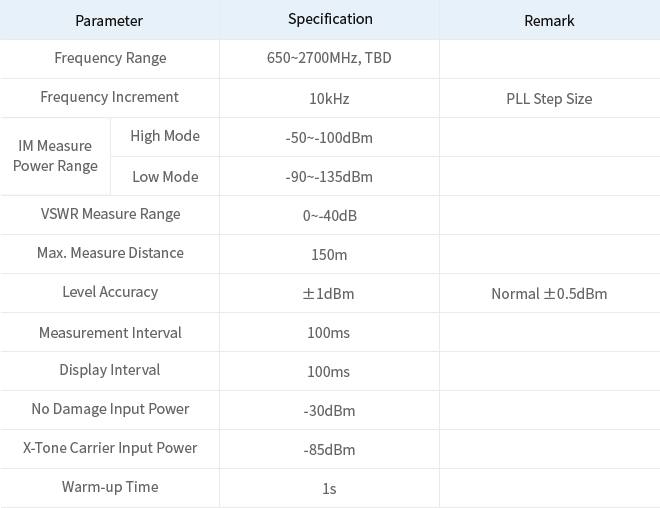

Specifications
Parameter Specification Remark
Frequency Range 650~2700MHz, TBD
Frequency Increment 10kHz PLL Step Size
IM Measure Power Range High Mode -50~-100dBm
IM Measure Power Range Low Mode -90~-135dBm
VSWR Measure Range 0~-40dB
Max. Measure Distance 150m
Level Accuracy ±1dBm Normal ±0.5dBm
Measurement Interval 100ms
Display Interval 100ms
No Damage Input Power -30dBm
X-Tone Carrier Input Power -85dBm
Warm-up Time 1s
