Real-time Digital Wireless Voice Transceiver

icon
Real-time Digital Wireless Voice Transceiver

Real-time Digital Wireless Voice Transmitter

Main features
  • Dedicated 900MHz UHF band
  • Adopting Digital Modulation(QPSK) technique
  • More than three times the frequency efficiency compared to general analog system

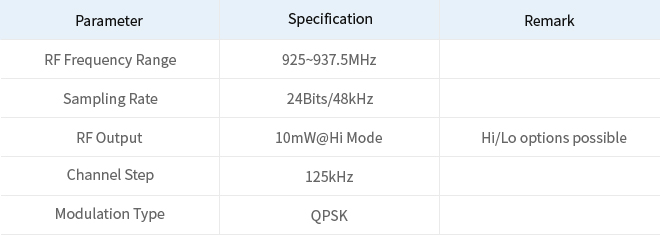

Specifications
Parameter Specification Remark
RF Frequency Range 925~937.5MHz
Sampling Rate 24Bits/48kHz
RF Output 10mW@Hi Mode Hi/Lo options possible
Channel Step 125kHz
Modulation Type QPSK

Real-time Digital Wireless Voice Receiver

Main features
  • Dedicated 900MHz UHF band
  • Adopting Digital Modulation(QPSK) technique
  • Applied self-developed audio codec

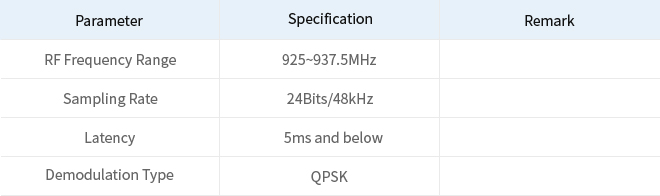

Specifications
Parameter Specification Remark
RF Frequency Range 925~937.5MHz
Sampling Rate 24Bits/48kHz
Latency 5ms and below
Demodulation Type QPSK
